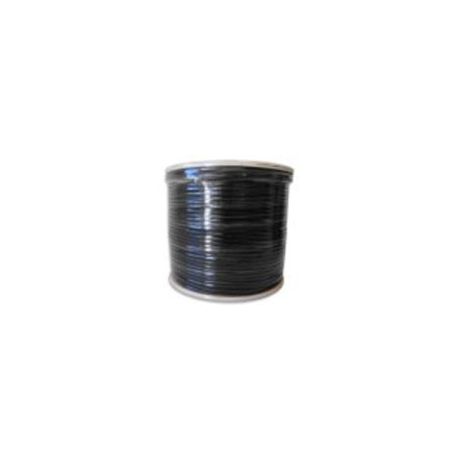

EZ-195, 100 meter Spool.
EZ-195 coaxial cable is designed for a wide variety of applications requiring low loss RF cable, including outdoor antenna installations and jumper cable assemblies used in wireless communications.
It is constructed with a UV resistant polyethylene jacket for outdoor use.
This cable is also designed for easy installation with maximum flexibility and bendability and is compatible with a wide variety of connectors.
Ehanced for usage from 2GHz up to 6GHz
| Σύνδεσμοι Προϊόντος: | |||
|---|---|---|---|
 Datasheet |
|||
| Electrical Specifications : | |
|---|---|
| Cutoff Frequency | 41 GHz |
| Velocity of Propagation | 76% |
| Impedance | 50 ohms |
| Capacitance | 25.4 pF/ft (83.3 pF/m) |
| DC Resistance Inner Conductor |
7.6 ohms/1000ft (24.9 ohms/km) |
| DC Resistance Outer Conductor |
4.9 ohms/1000ft (16.1 ohms/km)) |
| Peak Power | 2.5 kW |
| Jack Spark | 3000 Volts RMS |
| Cable Construction: | |
| Inner Conductor | Solid Bare Copper 0.94 mm |
| Dielectric | Foam Polyethylene 2.79mm |
| Outer Conductor | Aluminum Tape 2.95mm |
| Capacitance | 25.4 pF/ft (83.3 pF/m) |
| Braid | Tinned Copper 3.53mm |
| Jacket | Black PVC/PE. 4.95mm |
| Mechanical and Environmental Specifications: | |
| Minimum Bend Radius | 12.7mm |
| Tensile Strength | 40 lb (18.2kg) |
| Cable Weight | 0.03kg/m |
| Operating Temperature Range | -40°C to +85°C |
