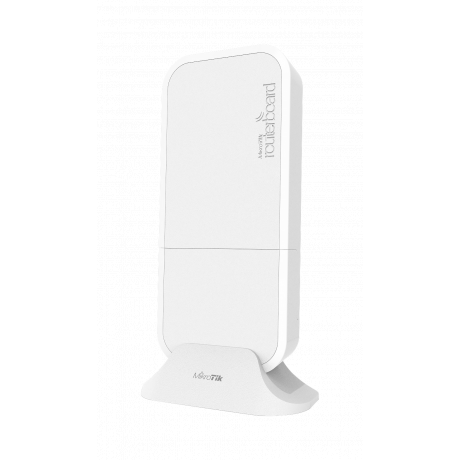

MikroTik wAPR-2nD&EC200A-EU, wAP LTE kit (2024), 2dBi, 25dBm, 650MHz, 64MB, 4G/LTE, 1xminiPCI-e, 1xEthernet, 1xMini SIM, L4

Κάνε μια ερώτηση
730 ημέρες
Βάρος: 1.00 kg ανά τεμάχιο
104.84

Με ΦΠΑ 130.00
+
Ογκομετρικό βάρος: 1kg
Διαθέσιμο για παραγγελία
Παράδοση 1 με 3 εργάσιμες

A refresh of the classic weatherproof wAP LTE kit – with a new LTE modem that brings the PRICE DOWN and the performance UP! Disruptive pricing: the best OUTDOOR LTE/WI-FI deal on the market if you’re on a tight budget.

wAP LTE kit is a tiny weatherproof wireless access point for installation outside your house, in the garden, on your porch, or in any other challenging environment where you need a capable wireless connection on the tightest budget possible. It features an Ethernet port with passive PoE-in, but there are more ways to power this affordable access point: there’s also a standard DC jack and an automotive plug.

The new revision features a new LTE modem that offers improved connectivity, the addition of the popular B28 band, and a massive price drop!

wAP LTE kit is weatherproof and can be fixed to any external wall from the inside of the case – for extra security and less visible attachments. The bottom part can also be secured with a special anti-vandal screw, which can only be opened by the owner. There is an opening in the back of the case, allowing you to run the Ethernet cable directly behind the unit and through the wall. This way the wAP attracts less attention and blends into any environment.


Specifications

Details
Product code wAPR-2nD&EC200A-EU
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 60°C

Powering

Details
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 9-30 V
Automotive input Voltage 9-30 V
Max power consumption 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V

Mobile

Details
2G Category Class12
2G bands 8 (900MHz) / 3 (1800MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 20 (800MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 5 (850MHz) / 28 (700MHz)
LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz)
TAC 86314105

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, E-MARK, EAC, ROHS
IP 54

Included parts

  •  24V 0.8A power adapter
  •  Gigabit PoE injector
  •  K-52 fastening set
  •  K-50 locking set
  •  wAP desktop stand
  •  wAP mount
  •  0.35m 4pin Automotive adapter cable
  •  wAP ceiling mount bracket

Ethernet test results

wAPR-2nD&EC200A-EUr2 QCA9531 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
