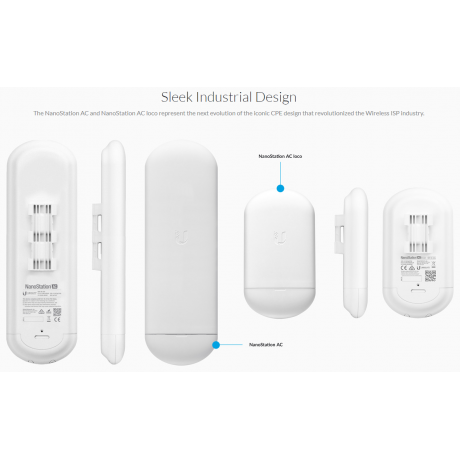

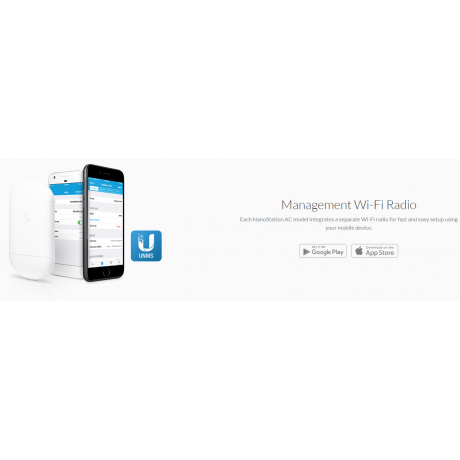

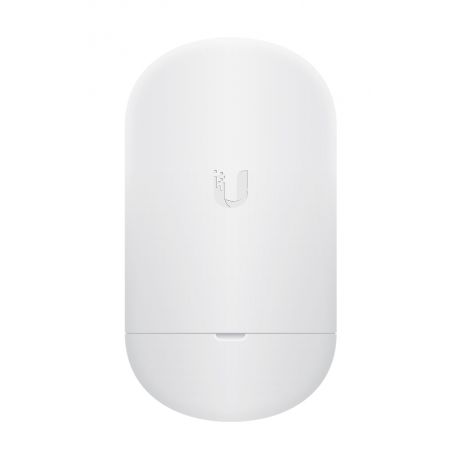

Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC loco make them extremely versatile and economical to deploy. The NanoStation AC loco feature airMAX technology and a dedicated Wi-Fi radio for management.
Technical specifications:
|
Dimensions |
179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
|
Weight |
180 g (6.35 oz) |
|
Power Supply |
24V, 0.5A Gigabit PoE Supply (not included) |
|
Max. Power Consumption |
8.5W |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Gain |
13 dBi |
|
Networking Interface |
10/100/1000 Mbps Ethernet Port |
|
Channel Bandwidths |
10/20/30/40/50/60/80 MHz |
|
Processor Specs |
Atheros MIPS 74Kc, 560 MHz |
|
Memory |
64 MB DDR2 |
|
Cross-pol Isolation |
20 dB Minimum |
|
Max. VSWR |
1.8:1 |
|
Beamwidth |
45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
|
Polarization |
Dual Linear |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
LEDs |
(1) Power |
|
Mounting |
Pole-Mount (Kit Included) |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
RoHS Compliance |
Yes |
|
ESD/EMP Protection |
±24kV Contact/Air |
|
Shock & Vibration |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, IC |
