MikroTik Routerboard 411AR (Level 4)

MikroTik Δείτε όλα τα προϊόντα

Μοιράσου το!

RouterBOARD

ΚΩΔΙΚΟΣ (SKU): 000851

Κάνε μια ερώτηση

Διάρκεια Εγγύησης: 730 ημέρες

Βάρος: 0.82 kg ανά τεμάχιο

36.29 €

Με ΦΠΑ 45.00 €

Ποσότητα

− +

Αγαπημένα Σύγκριση

Ογκομετρικό βάρος: 0.82kg

Διαθέσιμο για παραγγελία

Παράδοση 1 με 3 εργάσιμες

Τρόποι Πληρωμής:

Πιστωτική & Χρεωστική

Αντικαταβολή με μετρητά

Τραπεζική κατάθεση

Στο κατάστημα

Περιγραφή
Τεχνικά Χαρακτηριστικά
Manual
Performance test results
Αγοράστε μαζί
Product Code
Ετικέτες

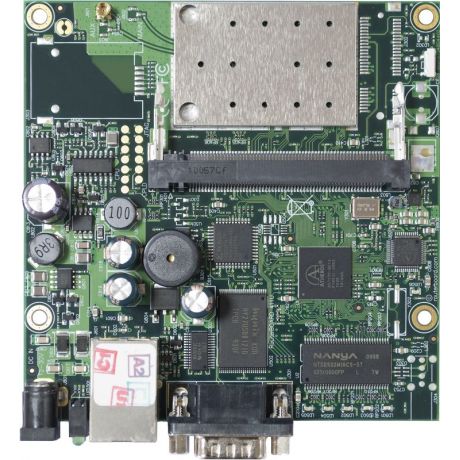

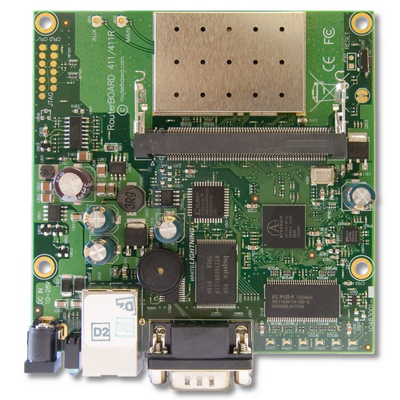

The RB411AR has an integrated 802.11b/g wireless card with MMCX conenctor.

Not only you have a readymade wireless solution, but also you have a spare miniPCI card slot for your choice of another wireless card!

With this device you can connect to a remote AP and serve your local area with internet both at the same time!

It has the same familiar footprint as the other RB411 series devices, which means you can mount it into any supported outdoor enclosure, and upgrading to this model will take just minutes.

Details
Product code	RB411AR
CPU nominal frequency	300 MHz
CPU core count	1
Architecture	MIPS-BE
Size of RAM	64 MB
10/100 Ethernet ports	1
10/100/1000 Ethernet ports	0
MiniPCI slots	1
MiniPCI-e slots	0
Wireless chip model	AR2417-AL1A
Wireless standards	802.11b/g
Number of USB ports	0
Memory Cards	0
Power Jack	1
802.3af support	No
Supported input voltage	10 V - 28 V
PoE in	Yes
PoE out	No
Voltage Monitor	Yes
CPU temperature monitor	No
PCB temperature monitor	No
Operating temperature range	-40°C .. +70°C tested
License level	4
Antenna gain DBI	No
Current Monitor	No
CPU	AR7130-BC1A
SFP ports	0
SFP+ ports	0
Number of chains	1
Serial port	RS232

RB411AR		AR7130 100M 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none	8.1	98.6	23.5	96.3	97.3	49.8
Bridging	25 bridge filter rules	8.1	98.6	23.5	96.3	41.0	21.0
Routing	none	8.1	98.6	23.5	96.3	79.4	40.7
Routing	25 simple queues	8.1	98.6	23.5	96.3	67.8	34.7
Routing	25 ip filter rules	8.1	98.6	23.5	96.3	24.7	12.6

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
