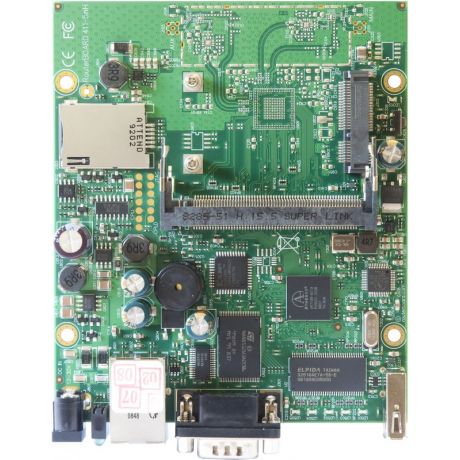

The RB411U is a versatile yet very small device. It includes all - a miniPCI slot (for 802.11 wireless cards), a USB 2.0 port and a miniPCIe slot for connecting a 3G card (does not support 802.11 wireless cards). A SIM card slot for 3G is also present on the RB411U.
RB411U includes RouterOS - the operating system, which can be a router, firewall, bandwidth manager, a mobile 3G router, and more - all at the same time.
You can use the USB port to attach a secondary storage device, or a USB 3G modem. The RB411U mounting holes are in the same location as other RB411 models, so you can easily mount it into any supported outdoor case/antenna.
| Details | |
|---|---|
| Product code | RB411U |
| CPU nominal frequency | 300 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 1 |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| Memory Cards | 0 |
| Power Jack | 1 |
| 802.3af support | No |
| Supported input voltage | 10 V - 28 V |
| PoE in | Yes |
| PoE out | No |
| Voltage Monitor | Yes |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Operating temperature range | -40°C .. +70°C tested |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | AR7130-BC1A |
| Max Power consumption | 10W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 0 |
| Serial port | RS232 |
- RouterBoot: ar7100_3.18.fwf
- Brochure : rb411u.pdf
- Design Files PDF : RB411Udim.pdf
- Dimensions : RB411U-dim.pdf
- Quick Guide : rb411U-qg.pdf
- Purchase questions: email sales
- RouterOS software manual
- Declaration of conformity (CE)
| RB411U | AR7130 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none | 8.1 | 98.6 | 23.5 | 96.3 | 97.3 | 49.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 41.0 | 21.0 |
| Routing | none | 8.1 | 98.6 | 23.5 | 96.3 | 79.4 | 40.7 |
| Routing | 25 simple queues | 8.1 | 98.6 | 23.5 | 96.3 | 67.8 | 34.7 |
| Routing | 25 ip filter rules | 8.1 | 98.6 | 23.5 | 96.3 | 24.7 | 12.6 |
