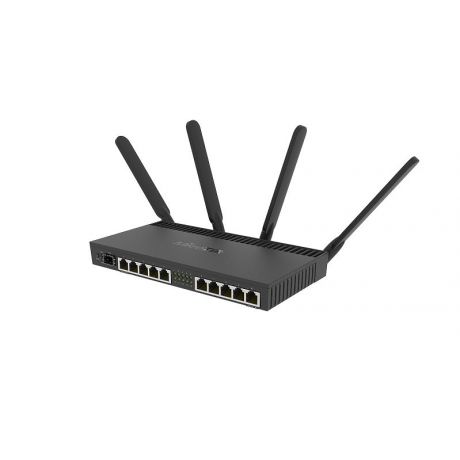

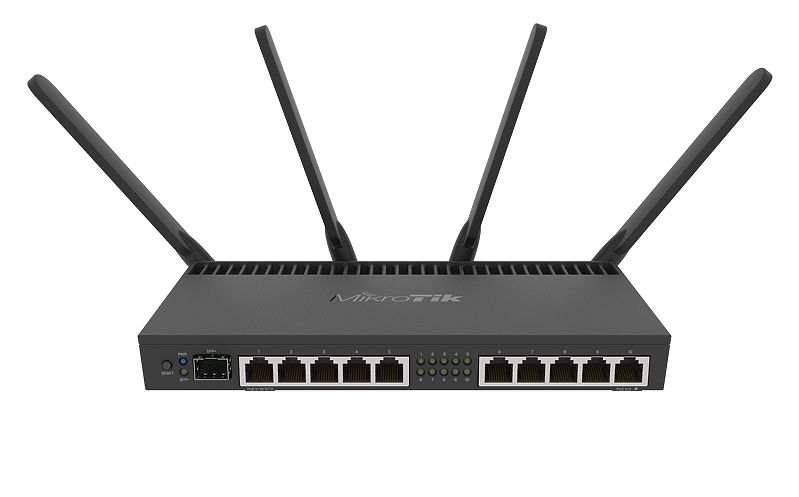

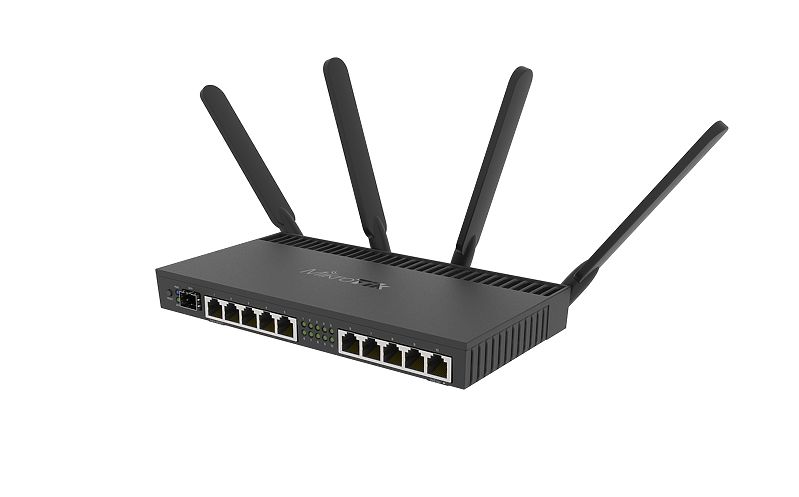

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!

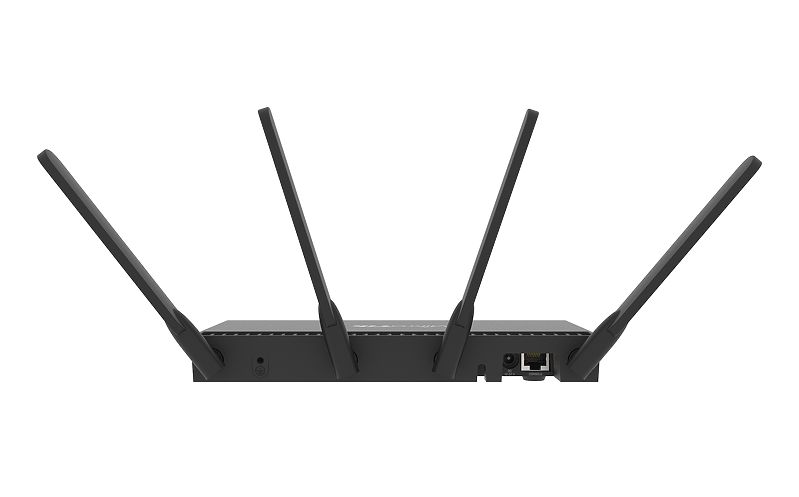

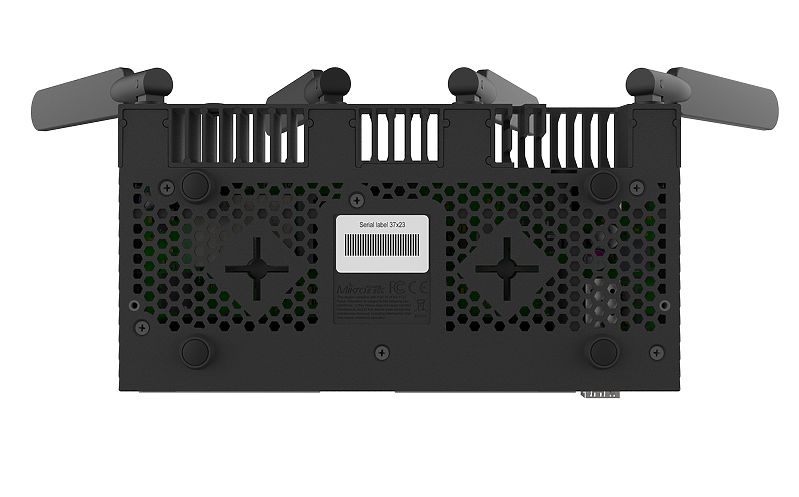

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
We have two versions available.
RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
| Details | |
|---|---|
| Product code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 45°C |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE out | Passive PoE up to 57V |
| PoE in input Voltage | 18-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 420 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11ac |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 10 |
| Details | |
|---|---|
| SFP+ ports | 1 |
| Details | |
|---|---|
| MiniPCI-e slots | 1 |
| Serial port | RJ45 |
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 33 | -96 |
| MCS7 | 28 | -77 |
| MCS9 | 26 | -72 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 24 | -79 |
| RB4011iGS+5HacQ2HnD-IN | AL21400 1G/S+ all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 806,4 | 9,792.9 | 2312,9 | 9,473.6 | 5509,7 | 2,821.0 |
| Bridging | 25 bridge filter rules | 806,4 | 9,792.9 | 1037,4 | 4,249.2 | 1153,2 | 590.4 |
| Routing | none (fast path) | 806,4 | 9,792.9 | 1923,3 | 7,877.8 | 5092,3 | 2,607.3 |
| Routing | 25 simple queues | 806,4 | 9,792.9 | 1046,6 | 4,286.9 | 960,3 | 491.7 |
| Routing | 25 ip filter rules | 593,7 | 7,209.9 | 625,2 | 2,560.8 | 564,6 | 289.1 |
| RB4011iGS+5HacQ2HnD-IN | AL21400 IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 140.8 | 1577.0 | 141.2 | 578.4 | 139.9 | 71.6 |
| 256 tunnels | AES-128-CBC + SHA1 | 192.7 | 2158.2 | 200.5 | 821.2 | 203.4 | 104.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 192.4 | 2154.9 | 200.5 | 821.2 | 203.4 | 104.1 |
| 256 tunnels | AES-256-CBC + SHA1 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
| 256 tunnels | AES-256-CBC + SHA256 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
| 256 tunnels | AES-128-GCM | 192.7 | 2158.2 | 202.2 | 828.2 | 203.4 | 104.1 |
