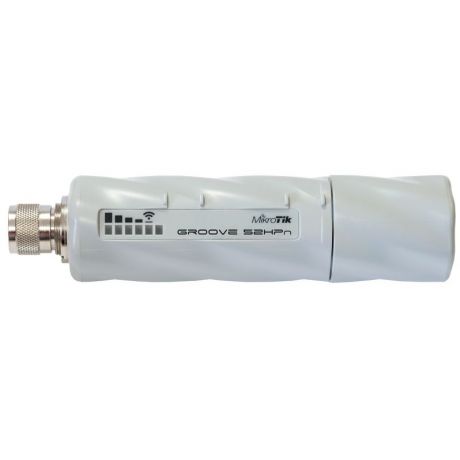

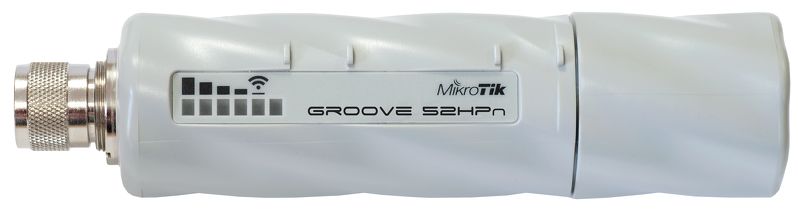

MikroTik Routerboard RBGrooveA-52HPn, 27dBm, 600MHz, 64MB, 2GHz/5GHz, 1xEthernet, L4 + 6dBi Omni
-1.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-2.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-3.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-4.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-5.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-6.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-1.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-2.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-3.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-4.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-5.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
-6.jpg "MikroTik Routerboard GrooveA 52HPn ( Level 4 )")
Please sign in so that we can notify you about a reply
Categories
Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! GrooveA has also supports AP mode.

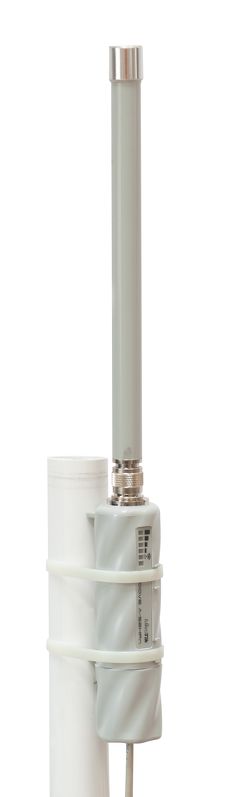

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

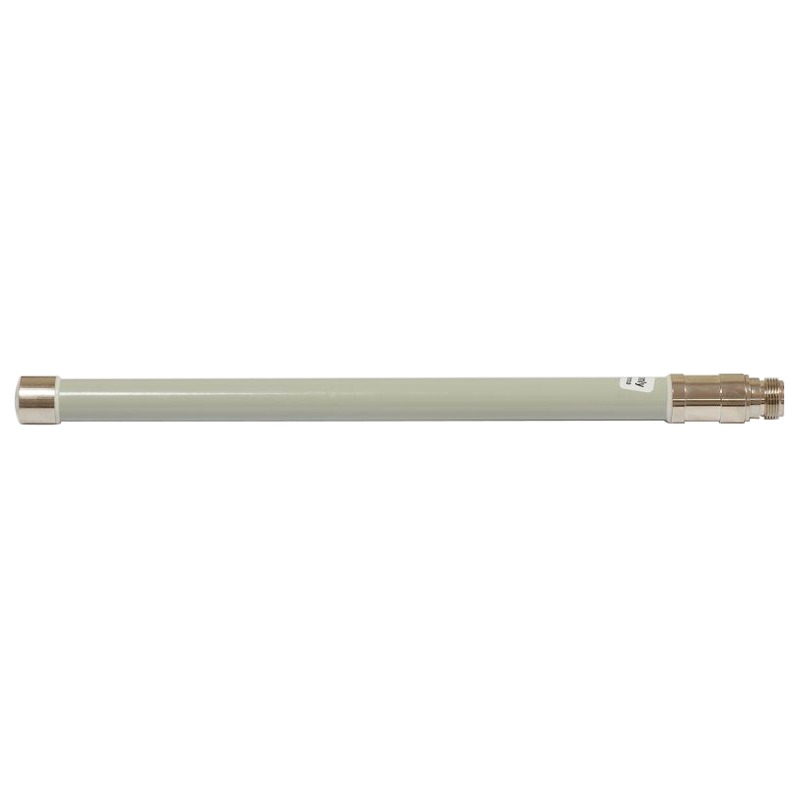

NEW- now comes packaged with a 2GHz/5GHz 6dBi Omni antena!

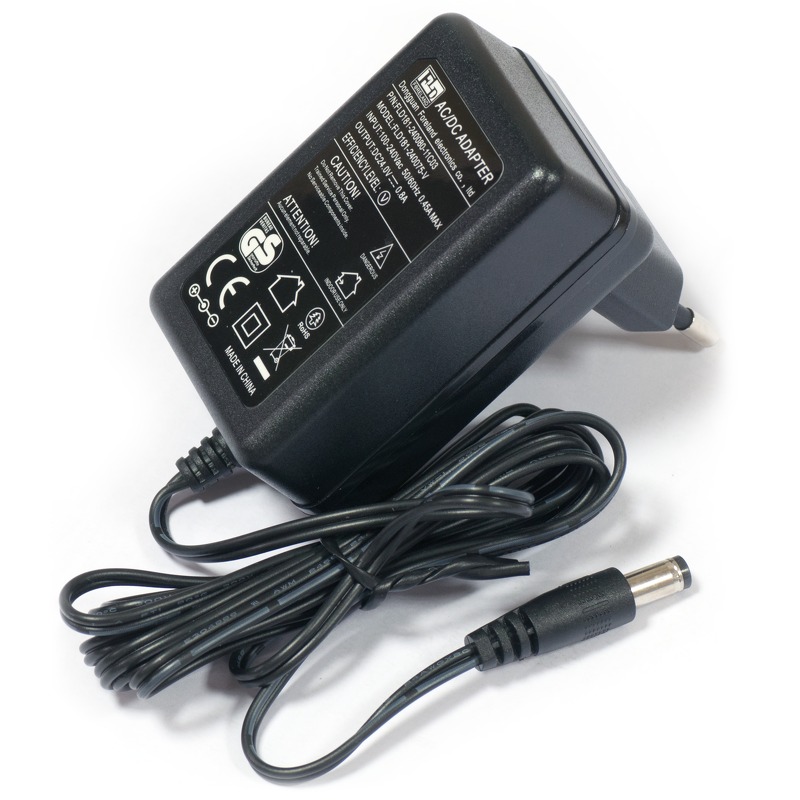

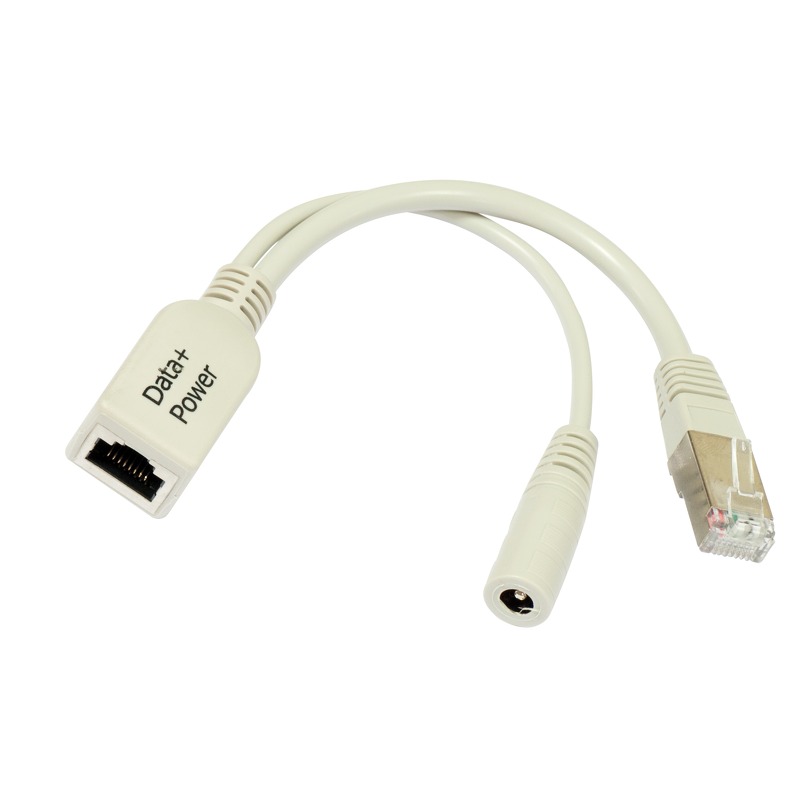

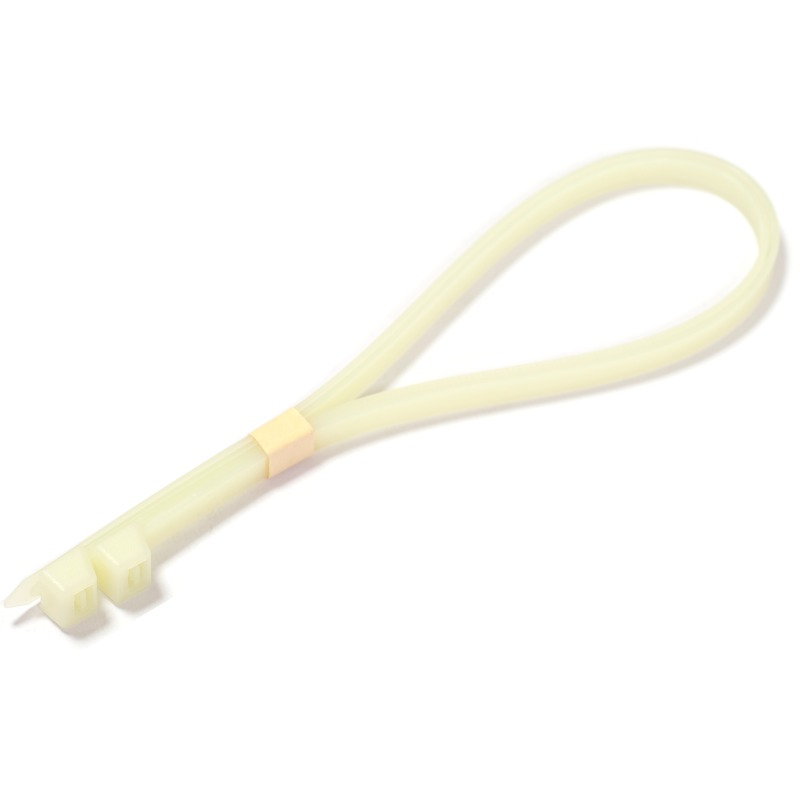

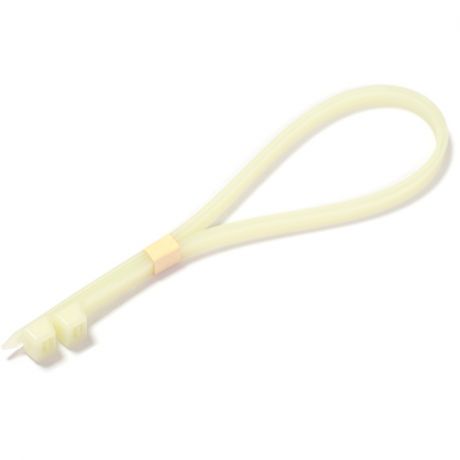

Included parts: Groove unit, mounting loops, PoE injector, power adapter, 6dBi 2.4/5Ghz Omni antenna
| Details | |
|---|---|
| Product code | RBGrooveA-52HPn |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 1 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9342-BL1A |
| Wireless standards | 802.11a/b/g/n |
| Number of USB ports | 0 |
| Power Jack | 0 |
| PoE out | No |
| PoE in | Yes |
| Supported input voltage | 9 V - 30 V |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 177x44x44mm, 193g |
| Operating System | RouterOS |
| Operating temperature range | -30C to +70C |
| License level | 4 |
| Antenna gain DBI | 6 |
| Current Monitor | No |
| CPU | AR9342-BL1A |
| Max Power consumption | Up to 0.19A at 24V (4.56W) |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Number of chains | 1 |
| Serial port | None |
| RBGrooveA-52HPn | AR9342 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
Part Number:
RBGrooveA-52HPn
