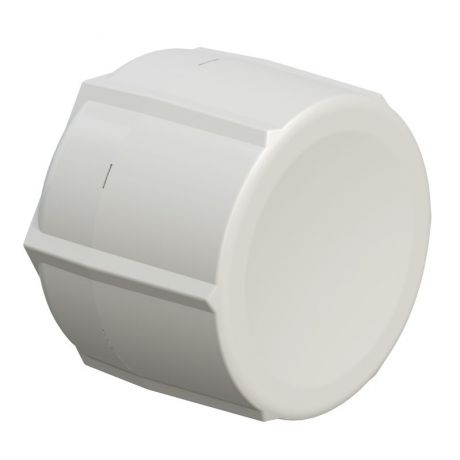

MikroTik Routerboard SXTG-5HPnD-HGr2

MikroTik Δείτε όλα τα προϊόντα

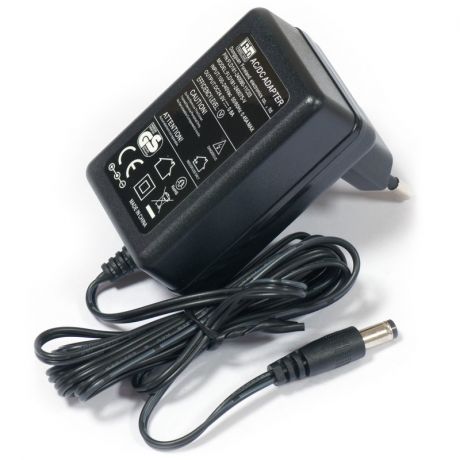

MikroTik Routerboard SXTG-5HPnD-HGr2 - Power Supply

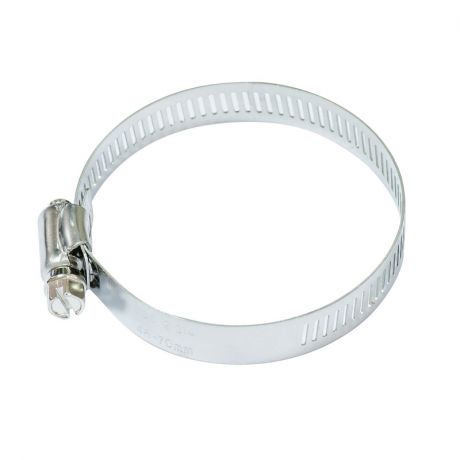

MikroTik Routerboard SXTG-5HPnD-HGr2 - Metal Ring (one)

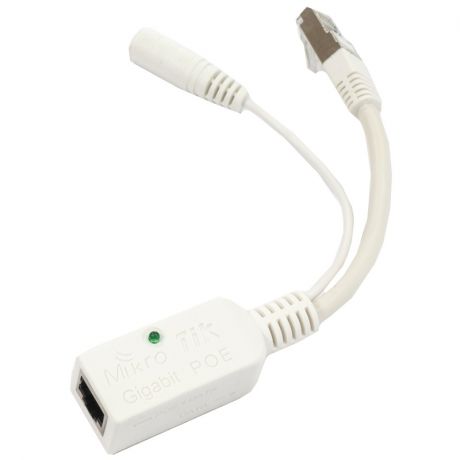

MikroTik Routerboard SXTG-5HPnD-HGr2 - PoE

Μοιράσου το!

Wireless systems

ΚΩΔΙΚΟΣ (SKU): 001660

Κάνε μια ερώτηση

Διάρκεια Εγγύησης: 730 ημέρες

Βάρος: 0.80 kg ανά τεμάχιο

[Επικοινωνήστε για Τιμή]

Αγαπημένα Σύγκριση

Ογκομετρικό βάρος: 0.8kg

Εκτός Παραγωγής

Επικοινωνήστε μαζί μας για να σας ενημερώσουμε για το υλικό που το αντικαθιστά " sales@linkshop.gr "

Τρόποι Πληρωμής:

Πιστωτική & Χρεωστική

Αντικαταβολή με μετρητά

Τραπεζική κατάθεση

Στο κατάστημα

Περιγραφή
Τεχνικά Χαρακτηριστικά
Manual
Performance test results
Product Code

SXTG HG is a High Gain, High Power wireless device designed and manufactured by MikroTik. The wireless output power for this device is up to 30dBm (1000 mW!).

It is equipped with 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and RouterOS L4 license (can be used as AP, Backbone or CPE).

It is powered by our new generation AR9344 CPU, which makes it even more powerful, to ensure you get the maximum throughtput.

Unit comes complete with SXT, PoE injector, power supply and mounting kit.

Included parts: Gigabit PoE injector, 24V 0.8A power adapter, Metal ring (one)

Details
Product code	RBSXTG-5HPnD-HGr2
CPU nominal frequency	600 MHz
CPU core count	1
Size of RAM	64 MB
Architecture	MIPS-BE
10/100 Ethernet ports	0
10/100/1000 Ethernet ports	1
MiniPCI slots	0
MiniPCI-e slots	0
Wireless chip model	AR9344-DC3A-R
Wireless standards	802.11a/n
Number of USB ports	1
Memory Cards	0
Power Jack	0
PoE in	Yes
PoE out	No
Supported input voltage	6 V - 30 V
Voltage Monitor	Yes
CPU temperature monitor	No
PCB temperature monitor	Yes
Operating System	RouterOS
Operating temperature range	-35C to +65C
License level	4
Antenna gain DBI	16.5
Current Monitor	No
CPU	AR9344-DC3A-R
SFP ports	0
SFP+ ports	0
USB slot type	USB type A
Number of chains	2
Serial port	None

RBSXTG-5HPnD-HGr2		AR9344 1G 1 port test
Mode	Configuration	1518 byte		512 byte		64 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Bridging	none (fast path)	81.0	983.7	232.0	950.3	269.6	138.0
Bridging	25 bridge filter rules	81.0	983.7	86.0	352.3	87.6	44.9
Routing	none (fast path)	81.0	983.7	210.0	860.2	226.9	116.2
Routing	25 simple queues	81.0	983.7	103.9	425.6	106.6	54.6
Routing	25 ip filter rules	56.8	689.8	59.6	244.1	60.5	31.0

All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
