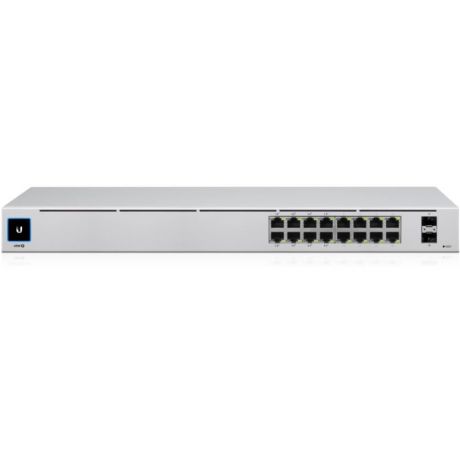

USW-16-POE is a configurable Gigabit Layer 2 switch with 16 Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and 2 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Management via UniFi controller
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Package contains
Technical parameters
| Connectors and Interfaces | |
| LAN speed: | (16) 10/100/1000Mbps |
| SFP/SFP+/QSFP+ speed: | (2) 1000Mbps |
| Other features: | Touchscreen |
| General | |
| Packet forwarding rate [Mpps]: | 26,78 |
| Switchning capacity [Gbps]: | 36 |
| MAC address table: | 16000 |
| Physical characteristics | |
| Design: | Rackmount |
| Fans: | Without fan |
| Chassis design: | Metal |
| Operating temperature [°C]: | -5 up to 40 |
| Depth [mm]: | 200 |
| Width [mm]: | 442 |
| Height [mm]: | 44 |
| Power | |
| Power type: | Mains power (230V) |
| PoE type: | PoE-Out (only) |
| PoE-Out standards: | 802.3af, 802.3at |
| PoE Out ports: | 8 |
| Total Available PoE [W]: | 42 |
| Max. power consumption [W]: | 18 |
| Power via connector/terminal: | 100 to 240V AC |
| Software | |
| Default IP address: | 192.168.1.20, Dynamic from DHCP |
| Default login and password: | ubnt / ubnt |
