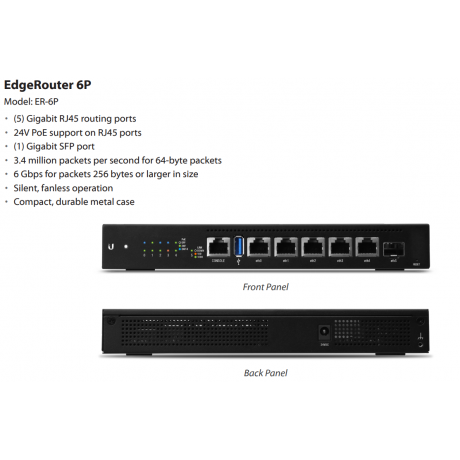

Ubiquiti Networks introduces the EdgeRouter 6P, part of the next generation of routers for the EdgeMAX platform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter 6P offers five Gigabit Ethernet ports with configurable PoE and an SFP port for a fiber link. The EdgeRouter 6P is capable of routing up to 3.4 million packets per second and has a line rate of 6 Gbps.
Main Features
Technical Specification
| Dimensions | 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in) |
| Weight | 730 g (1.61 lb) |
| Max. Power Consumption | 16 W (Excludes PoE Output) |
| Power | External AC Power Adapter, 60W (24V, 2.5A) |
| Power Input | 110 - 240VAC |
| Button | Reset |
| LEDs | Data Ports: Speed/Link/Activity, PoE SFP Data Port: Link/Activity |
| Management Interface | (1) RJ45 Serial Port |
| Networking Interfaces | (6) Ethernet Ports (Default eth0) (5) 10/100/1000 RJ45 Ports with PoE (1) 1 Gbps SFP Port |
| Processor | 4-Core 1 GHz, MIPS64 |
| System Memory | 1 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB eMMC, 8 MB SPI NOR |
| Rack-Mountable | Yes |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Interfaces | (5) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-) and 4-pair |
| Passive PoE Max. Wattage Per Port | 24W (24V/1A, 4-pair) |
| Voltage Range Passive PoE | 24V |
